Surface Shape Measuring Machine With Preferential price

Name: Surface Shape Measuring Machine With Preferential price
Brand: UNIMETRO
Price: 1 USD

Brand Name : UNIMETRO

Model Number : SE1000

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Price : Discussible

Payment Terms : L/C, T/T

Supply Ability : 30

Delivery Time : 15~20 work days

Packaging Details : Wooden Case

Product name : Surface Shape Measuring Machine

Driver Measurement : 100mm

Driver Resolution ratio : 0.2um

Sensor measurement : +-0.5~+-5mm

Sensor Resolution ratio : 65536:1

Column : 320mm

Z1 linear Accuracy : ≤±0.15%f.s.

Pt5 : ±0.3μm

Contact Now

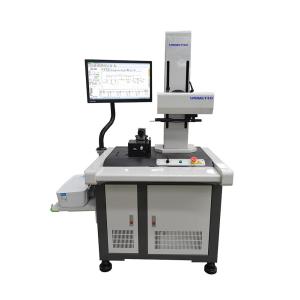

Surface Shape Measuring Machine

Characteristic

● Standard type, low cost
● Standard Inductive Profile Sensor
● High Precision Profile Measurement with Small Range

Surface Shape Measuring Machine Measurement Range

Item	Measurement	Resolution ratio
Driver	100mm	0.2μm
Sensor	±0.5mm~±5mm	65536:1
Column	320mm	-

Surface Shape Measuring Machine Measurement Range

Item	Measurement	Resolution ratio
	Pt5	±0.3μm
	Angle3	±2′
	Straightness4	0.5μm/100mm
Motion Control	X-axis drive mode	Electricity
	Z-axis drive mode	Electricity
	X-axis drive speed	0.1~10mm/s
	Z-axis drive speed	0.5-10mm/s

Parameters

Category	Part name	Specification No.	Quantity
Host part	One-in-One Standard Machine Table	cp-mp1	1 set
	Standard column	cp-cn-sb	1 set
	Standard Driver	cp-d-sspm	1 set
	Standard Inductive Profile Sensor	cp-ztr-ic-01	1 set
	Electrical control system	cp-mc	1 set
	signal processing system	cp-sip	1 set
	Software	CMS	1 set
Enclosure	Computer	cp-01	1 set
	Printer	pr-1	1 set
	Pusher damp	800010	1 set
	Standard Adjustment Table	cp-br-150	1 set
	Precision sinusoidal platform clamp	fq-4	1 set
	Hold-all	tb-10	1 set
	Calibration standard parts		1 set
	Spring quick disassembly straight rod	sq-2-18-163.5-s	1 pc
	Single-section needle	D-2-18-17	1 pc

Company Information

Surface Shape Measuring Machine With Preferential price

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
